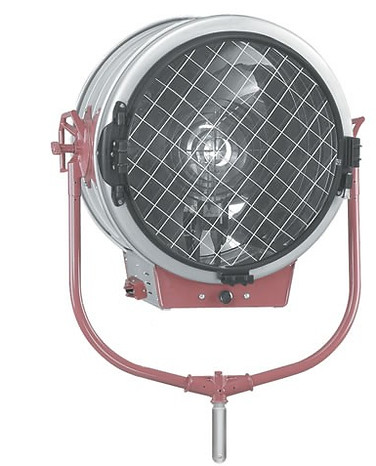

10,000 Watt 24" Molebeam Projector

specifications

Head:

Type 8371, 10,000 watts.

Rating:

120/240 volts, A.C./D.C., 83.3 amps max. - 10,000 watts max.

Socket:

Positive Locking Bi-post contacts.

Switch:

100 Amp, quick-make, quick break. Mounted in trough.

Cable:

Attached 3 ft. #4/1 Entertainment cable with #6/1 ground and MC258G male plug.

Head

Construction:

Aluminum with vertical circular interlocking channels for ventilation.

Yoke:

Tubular Aluminum and Aluminum castings with removable 1 ⅛” dia. steel yoke pin.

Safety Glass:

24" dia. flat, clear Pyrex.

Reflector:

24 ¾” dia. highly reflective parabolic glass mirror.

Focusing:

Knobs, in front and rear of fixture.

Finish:

Clear Anodized Aluminum/Maroon Powder Coated Enamel.

Size:

Weight:

22 ½” x 33 ½” x 47”

79 lbs. (w/ cable.)

Accessories

Item Number

Moledisc Diffuser Frame (29" dia.)

Molering Diffuser Frame (29" dia.)

Single Moledura Scrim (29" dia.)

Double Moledura Scrim (29" dia.)

Scrim Bag

Shutter

Shutter Box

DMX Shutter Motor

Clear Lens

100A Bates Cable - 25 ft.

Extension Arms (Set of 3)

Flat Diffuser Frame (4' x 4')

Square Tube Diffuser Frame (Breakdown 4' x 4') Type 635187 Extension Arm needed for mounting.

Heavy Duty Ball Bearing C-Clamp and Adapter (for lamps having 1 ⅛ " dia. yoke pin.)

450481A

450746

450763S

450763D

G140

518

51836

6611

450816

5001301

635187

34724

425100

500350
