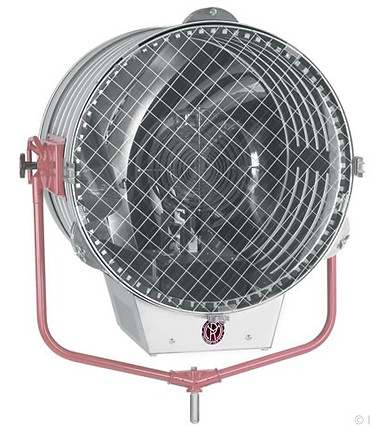

20,000 Watt 36" Molebeam Projector

specifications

Head:

Type 8351, 20,000 watts.

Rating:

220/240 volts, A.C., 96.2 amps max. - 20,000 watts max.

Socket:

Positive Locking Bi-post contacts.

Switch:

100 Amp, quick-make, quick break. Mounted in trough.

Cable:

Attached 3 ft. #4/1 Entertainment cable with #6/1 ground and MC259G male plug.

Head

Construction:

Light aluminum with vertical circular interlocking channels for ventilation and a louvered aluminum trough with aluminum end castings.

Yoke:

Tubular Aluminum and Aluminum castings with removable 1 ⅛” dia. steel yoke pin.

Safety Glass:

36" dia. flat, clear Pyrex.

Reflector:

36" dia. parabolic glass mirror.

Focusing:

Rotating knob in rear of fixture.

Finish:

Clear Anodized Aluminum/Maroon Powder Coated Enamel.

Size:

Weight:

33” x 43” 43 ½”

125 lbs. (w/ cable.)

Accessories

Item Number

Extension Arms (Set of 3)

Flat Diffuser Frame (Solid 4' x 4')

635187

34724
