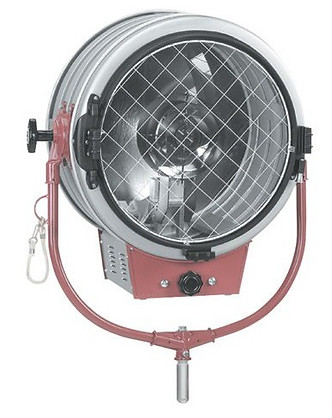

1,200 Watt 18" Molebeam Daylite Projector

adobe pdf.jpg

specifications

Head:

Rating:

Type 8211 1,200 Watts.

120 volts, A.C., 15.6 amps max. - 1,200 watts max.

Socket:

Type 632 heavy duty electrical grade porcelain body with friction type Bipost brass inserts

Switch:

ON and OFF push button switches mounted on ballast control panel; allows lamp to be switched ON and OFF from ballast and instantly reignited when hot.

Safety Switch:

Interlock microswitch on front door. Shuts off power to globe sockets if door is open. Globe cannot be turned on until door is closed.

Head

Construction:

Light aluminum with vertical circular interlocking channels for ventilation and a louvered aluminum trough with aluminum end castings

Yoke:

Tubular Aluminum and Aluminum castings with removable 1 ⅛” dia. steel yoke pin

Safety Glass:

Reflector:

18" dia. Clear, Pyrex glass lens

20" parabolic glass mirror with high temperature reflective coating

Finish:

Clear Anodized Aluminum/Maroon Powder Coated Enamel

Size:

Weight:

17 ½” x 27 ½” x 38”

48 lbs. (with cable.)

Accessories

Item Number

Moledisc Diffuser Frame (21" dia.)

Molering Diffuser Frame (21" dia.)

Single Moledura Scrim (21" dia.)

Double Moledura Scrim (21" dia.)

Scrim Bag

Shutter

Shutter Box

41699A

416141

416173S

416173D

G140

513

51338

DMX Shutter Motor

Extension Arms (Set of 3)

Flat Diffuser Frame (4' x 4')

Square Tube Diffuser Frame (Breakdown 4' x 4') Type 635187 Extension Arm needed for mounting.

Heavy Duty Ball Bearing C-Clamp and Adapter (for lamps having 1 ⅛ " dia. yoke pin.)

6611

635187

34724

425100

500350

8211 perf
